Tsunesaburo kanna restoration: 2. The blade/iron and chipbreaker

This post details restoration of a kanna by Tsunesaburo and continues from Part 1.
I correct the ‘ears’ on the blade with a white wheel on a stationary bench grinder. I make sure to mark the width I need to go to on each side first; then, at the machine, I just take it slow and use water as a coolant. I should also add I freehand this. Using some form of a jig, or at least a tool rest, will no doubt allow more consistent and repeatable results than mine. Even with my crude, simple technique the blade soon starts looking much better.
Bearded Witch Tsunesaburo-10

Most importantly, the edge is now centred. I grind a bit more than I need since I will be removing the chips in the edge and increasing the bevel angle, therefore shortening the blade. This will widen the edge again. I may need to fine tune it later. This is an ongoing maintenance aspect anyway and is very quick to do.

While at the grinder, I also take off the mushroomed sections at the top of the iron and the chipbreaker. This is a bit awkward to do since visibility is greatly reduced at the angle you need to hold the blade at (unless you want to introduce a bevel).  If you fancy giving one of your kannas a similar treatment but feel a bit apprehensive, you can just forego the grinder and use a file. The top half of your kanna will be made of either soft steel or iron, and will be very easy to work by hand.

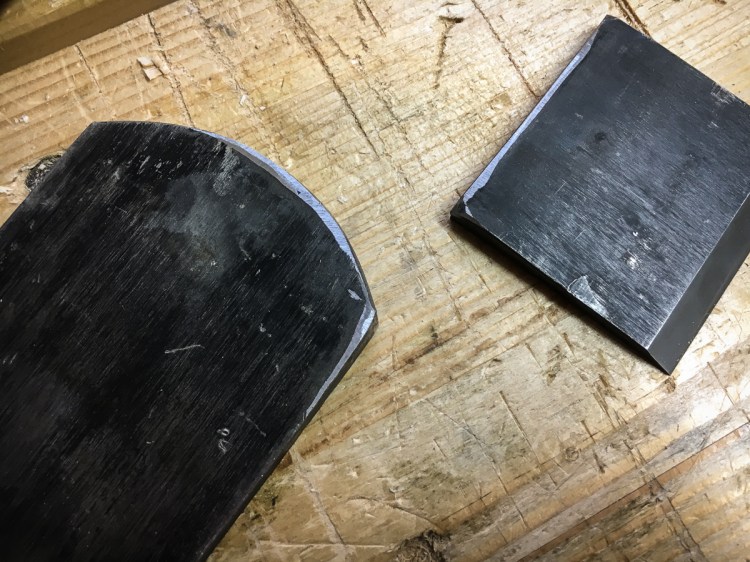

BBW Tsunesaburo Part 2-2
Straight off the grinder

After grinding, I finesse the surface slightly with a second cut metal file. My intention is to rust blue the exposed bare metal later in order to somewhat blend these areas in.

BBW Tsunesaburo Part 2-3
After filing

I now turn my attention to the edge itself, and that shallow bevel angle. My first concern is to widen the flat on the back of the blade. I alternate tapping out with lapping on a medium stone. I prefer to take things gradually, and once I recover a couple of millimetres, I start on the bevel.

BBW Tsunesaburo Part 2-15

The bevel angle is a big job. I prefer to do it by hand, with the blade in a guide and on a rough stone.

BBW Tsunesaburo Part 2-20

An audiobook keeps me company; this takes a significant amount of time and effort. An aggressive and firm stone helps.

BBW Tsunesaburo Part 2-18
The chips are gone; a long way still ahead for this bevel

As the angle on the bevel starts building up, and the blade shortens, I return to the anvil for more tapping out and some lapping on the back again. I then alternate the tapping out and lapping the back with longer sessions of working on the bevel. This steel is hard and tenacious…

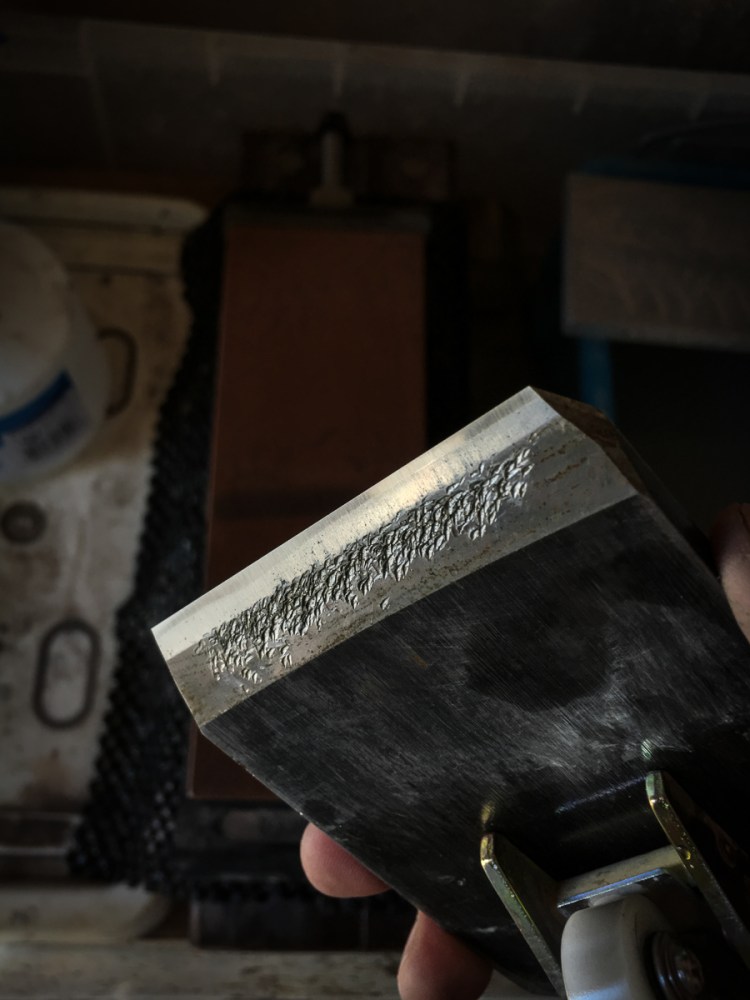

BBW Tsunesaburo Part 2-22

It is important to note that this blade took a lot of tapping. The very shallow angle made the bevel long and thin; my feeling is that this may present an increased risk of cracking the blade. In any case, I try and spread the taps over a wider area to ‘massage’ the steel forward gradually, and cushion the steel side (I just use a folded card or newspaper).

BBW Tsunesaburo Part 2-1

It is also important to note that it is not strictly necessary to establish the full length of the bevel at the new angle – and it can be argued that it is somewhat wasteful to rid the blade of precious hard steel in the process. I do it in this case but I would be happy to settle on maybe 3/4 length or so for practical reasons. Once I am satisfied with the bevel geometry, I correct the ears once again. I fine tune them with a medium synthetic stone.

I then take the blade through my sharpening procedure to work up a fine finish.

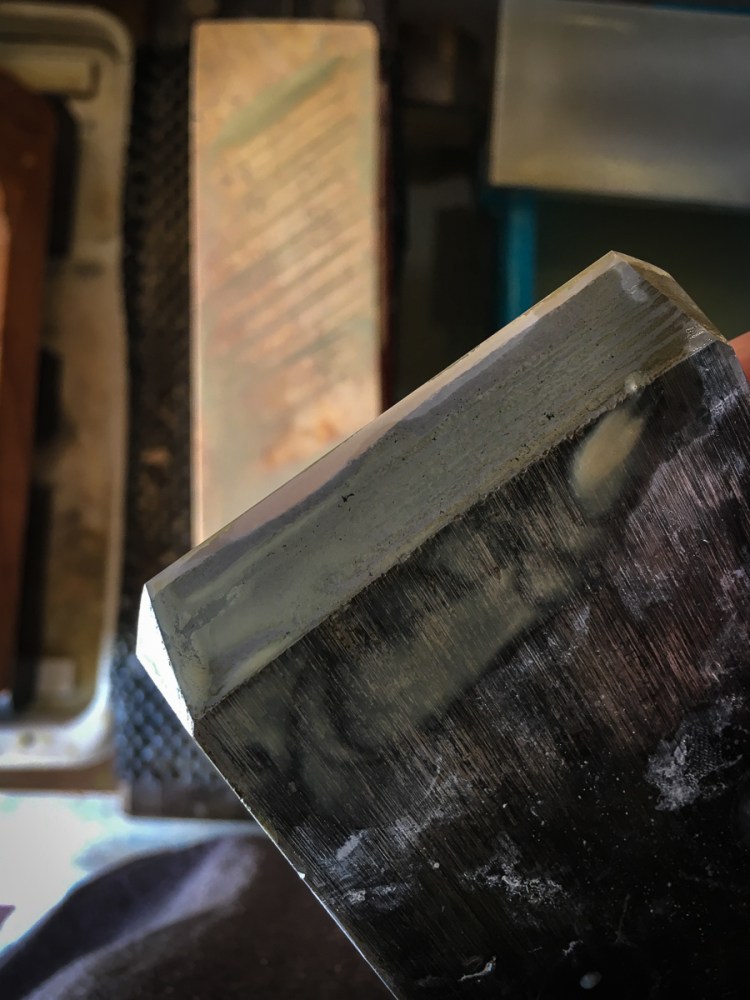

BBW Tsunesaburo Part 2-26
Ready to take to the finishing stone

As I noted in the previous post, the chipbreaker already has its geometry set up to my liking and, as a result, is fairly straightforward to prepare. It is an absolute pleasure to see a chipbreaker of this quality; it is of meticulously laminated steel construction and inspires 100% confidence. It aspires to be treated as equal to the main blade.

I flatten the back (including minor tapping out in one corner), and then work up the finish up to my fine stone.

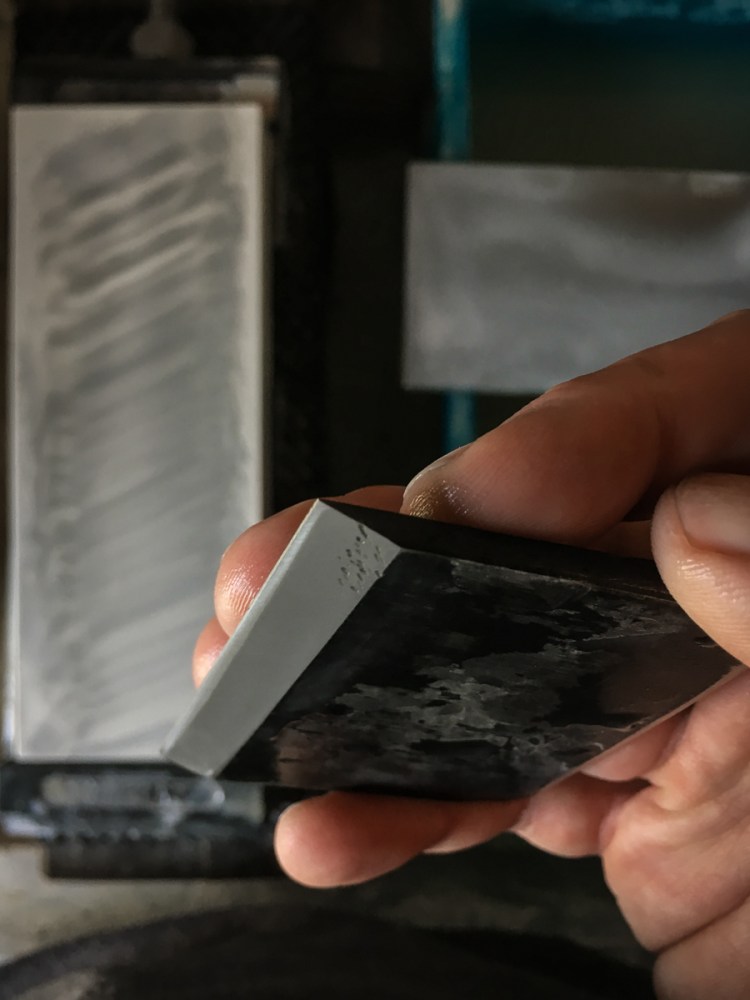

BBW Tsunesaburo Part 2-28
Just off the medium stone

I work on the back, the main bevel and the micro bevel.

BBW Tsunesaburo Part 2-29
The last step: polishing the microbevel

In the next, last instalment, I will look at fitting the chipbreaker to the blade, and correcting the dai. Stay tuned!
